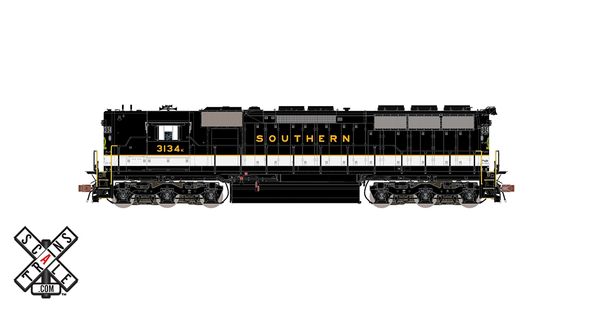

Scaletrains Rivet Counter Ho Scale SD45 Southern/Dulux Lettering DCC Ready

SKU #'s

SXT32931 Cab# 3134

SXT32933 Cab# 3147

SXT32935 Cab# 3154

Road Number Specific ScaleTrains

• Era: late 1970s to mid 1980s

• Series 3122 to 3157, built 11-67

• Phase IIa2

• Road numbers: 3134 K, 3147 R and 3154H

• Fully-assembled

• Multiple road numbers

• Operating LED tricolor (red, green, and white) flush-mounted class lights with raised gasket**

• Operating LED ground lights on both sides of locomotive

• Printed and LED-lighted number boards

• 81” high short hood

• Southern logos on hood ends

• High steel bell mounted on top of long hood

• Headlight mounted in top of high short hood

• Short and long hood top mounted walkway lights (non-operating)

• Front and rear full-width MU catch trays with footboards

• “Tall” stepwells with see-through steps and lifting slots

• “Early” (“X”) pattern walkway treadplate

• Front and rear early small deck extension

• Pivoting front and rear drop steps

• Rectangular walkway lights (non-operating)

• Latched battery box doors with narrow louvers and ATS extension on fireman’s side rear battery box

• Cab sub-base doors with stiffener rib

• Late drop grabs and standard nut-bolt-washer (NBW) mounting on nose front and top

• “35-Line” cab without center front windshields

• Tall square corner clear wind wings mounted fore and aft of cab side window on both sides of cab

• Detailed cab interior with separate floor, rear wall, seats, and standard AAR control stand

• No cab vents

• Sliding cab windows

• No arm rests

• Tall square corner clear wind wings mounted fore and aft of cab side window on both sides of cab

• Southern style sun awning

• Lost-wax brass Nathan AirChime P5 Horn (P135R24 configuration)

• Dual Motorola ASP-16 “Firecracker” antennas mounted on top of short hood

• Accurate hood door and long hood details

• Standard electrical cabinet seam and bolted alternator door

• Small ECAFB

• Early (smooth) blower duct housing

• Inertial air intake grilles without drip rails

• Standard height dust bin

• Standard-height exhaust stack

• Early (short forward taper) extended-range dynamic brakes with retrofitted cooling vents and “T” vent on top of roof

• Accurately profiled dynamic brake housing

• See-through dynamic brake intakes with resistor grid

• “Chickenwire” radiator intake grilles with diamond-pattern mesh screens

• Standard-height fan housings

• Photoetched concentric-ring fan grilles

• Short walkway duct with four short stanchions

• Semi-scale coupler buffer equipped with durable metal semi-scale Type “E” knuckle couplers

• Front and rear straight uncoupling levers with loop handles and four inner and two outer brackets

• Handrail set with pilot face mounted outer end rail stanchions

• 3-hose MU hose clusters with silver gladhands

• Late deck mounted MU receptacle with field loop receptacle

• Tall “zig-zag” pilot face

• Pilot face bracing detail behind stepwells

• Tall jacking pads with holes

• Tab-mount EFCO button

• Salem air filter (accordion style)

• 4,000-gallon fuel tank with single fuel filler, and dual “staggered” vertical fuel gauge per side

• Detailed Flexicoil-C (high-mount brake cylinder) trucks with Hyatt bearing caps and sanding lines and brackets

• Speed recorder first axle, left side

• No ACI labels

• Factory-applied detail parts: wire grab irons, wire lift rings, windshield wipers, trainline hoses with silver gladhands, sand hatch covers, and much more

• Motor with 5-pole skew-wound armature

• Dual flywheels

• All-wheel drive

• All-wheel electrical pick-up

• Directional LED headlights

• Printing and lettering legible even under magnification

• Paint colors matched to Tru-Color Paint: TCP-010 Black, TCP-080 Imitation Aluminum

• Operates on Code 70, 83 and 100 rail

• Packaging safely stores model

• Minimum radius: 18”

• Recommended radius: 22”
